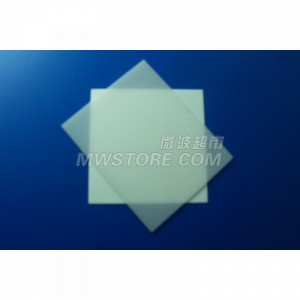

Alumina(AL2O3) Substrate

Add to Favorite Datasheet

Model:CS2020C20C-单面抛光美国进口 106493ID:

Price List

$ US Dollar | ￥人民币

Qty	1-9	10 -49	50+
Price	￥360.00	￥342.00	￥324.00

Price: ￥360.00 /pcs

Unshelved

Application
	⊙ Thin Film, Thick Film, LED Holder, DPC.

	--Features
	⊙ Good thermal conductivity, High insulation performance, Good mechanical strength.

	--Material Characteristics Table
	Material		Purity	Color	Surface Finish	Dielectric Constant	Dissipation Factor	Thermal Conductivity
	Code	Type	%	——	uinch	@1MHz	@1MHz	W/mK
	A	As-Fired	96.0	White	＜25.0	9.5	0.0003	24.7
	B	As-Fired	99.6	White	＜3.0	9.9	0.0001	26.9
	C	Polished	99.6	White	＜1.0	9.9	0.0001	26.9
	T	Polished	99.9	Translucent	＜0.8	10.0	0.0001	15.0
	--Size Choice
	Code	Type	T-inch (mm)		L & W -inch(mm)		T Tolerance	Roughness Ra u inch（um）
	A	96.0% -As-Fired -	0.006 (0.152)		2.02.0 (50.850.8)		±15.0%	＜25.0 （0.64）
			0.007 (0.178)		2.752.36 (70.060.0)
			0.008 (0.203)		3.03.0 (76.276.2)
			0.010 (0.254)		4.04.0 (101.2101.2)
			0.015 (0.381)		7.55.5 (190.5139.7)
			0.020 (0.508)
			0.025 (0.635)
	B	99.6% -As-Fired	0.010 (0.254)		2.02.0 (50.850.8)		±10.0%	＜3.0 （0.08）
			0.015 (0.381)		3.03.0 (76.276.2)
			0.020 (0.508)
			0.025 (0.635)
	C	99.6% Polished	0.010 (0.254)		2.02.0 (50.850.8)		±5.0%	＜1.0 （0.03）
			0.015 (0.381)
			0.020 (0.508)
			0.025 (0.635)
	T	99.9% Polished	0.010 (0.254)		2.02.0 (50.850.8)		±5.0%	＜0.8 （0.02）
			0.015 (0.381)
			0.020 (0.508)
			0.025 (0.635)
