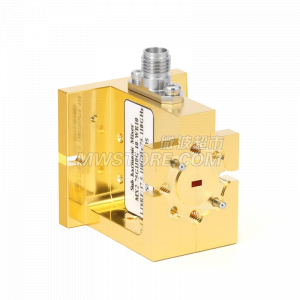

WR10 Sub-Harmonic Mixers ,RF Frequency Range (GHz) 75 ~ 110,LO Frequency Range (GHz) 37.5 ~ 55,IF Frequency Range (GHz) DC ~ 15，Conversion Loss(dB) @IF:279MHz 10 ，Conversion Loss(dB) @IF:1-15GHz 12
Description
| Impedance, Ohms |
50Ω |
| Connector Polarity |
Standard |
| Flange Type |
UG387/UM |
| RF Input Power (dBm) |
-10 Typ, 0 Max |
Electrical Specifications
| LO Frequency Range (GHz) |
37.5 ~ 55GHz |
| IF Frequency Range (GHz) |
DC~15GHz |
| LO Input Power (dBm) |
6~8 |
| RF Connector |
WR10-UG387/UM |
| LO Connector |
WR22-UG387/UM |
| IF Connector |
SMA F |
| Frequency Range |
75~110GHz |
Environmental Specifications
| Temperature Range |
+20℃~+30℃ |
