| Qty | 1-10 | 11 -100 | 101 -500 | 501+ |
|---|---|---|---|---|
| Price | ￥12,600.00 | ￥11,340.00 | ￥9,639.00 | ￥8,668.80 |

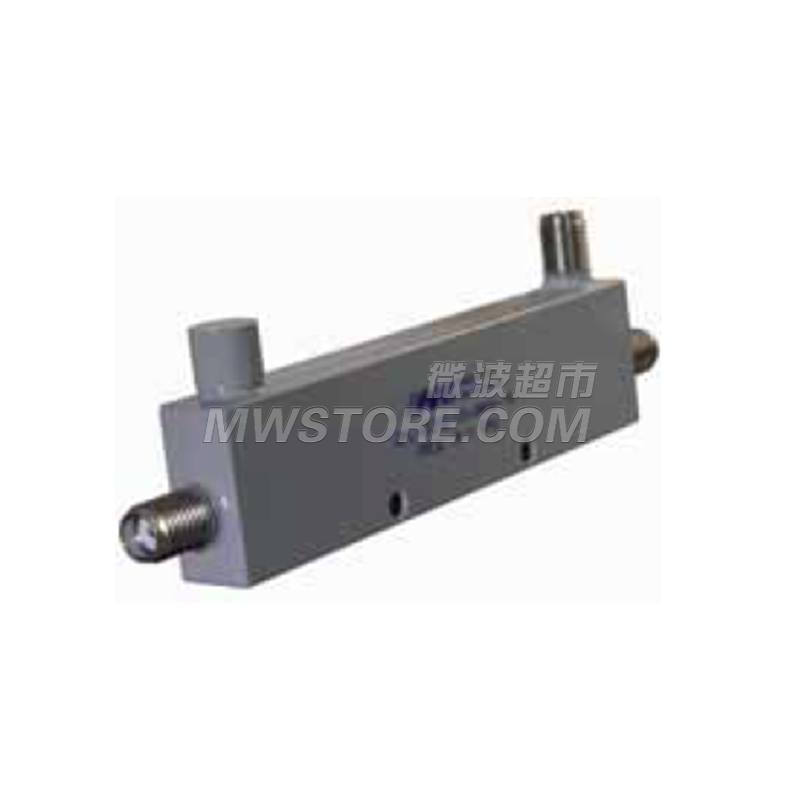

SMA 20dB Directional Coupler,0.5-18GHz,50W
| Peak Power Max. | 3kW |
|---|---|
| CW Power Max. | 50W |
| Impedance, Ohms | 50Ω |
| Conn.Type | SMA(F) |
| Frequency Range | 0.5 ~ 18G |
|---|---|
| Frequency Flatness Max. | ±1dB |
| Directivity Min. | 14dB |
| Coupling VSWR Max. | 1.4 |
| Main VSWR Max. | 1.5 |
| Nominal Coupling | 20±1dB |
| Insertion Loss | 1dB |
| Temperature Range | -35 ~ +105℃ |
|---|
