All Categories >RF Connector >SMA >Field Replaceable Connector >SMA male Field replacebale Connector,2 Hole Flange,Hole Spacing 12.2mm,Accepts 0.46mm Pin

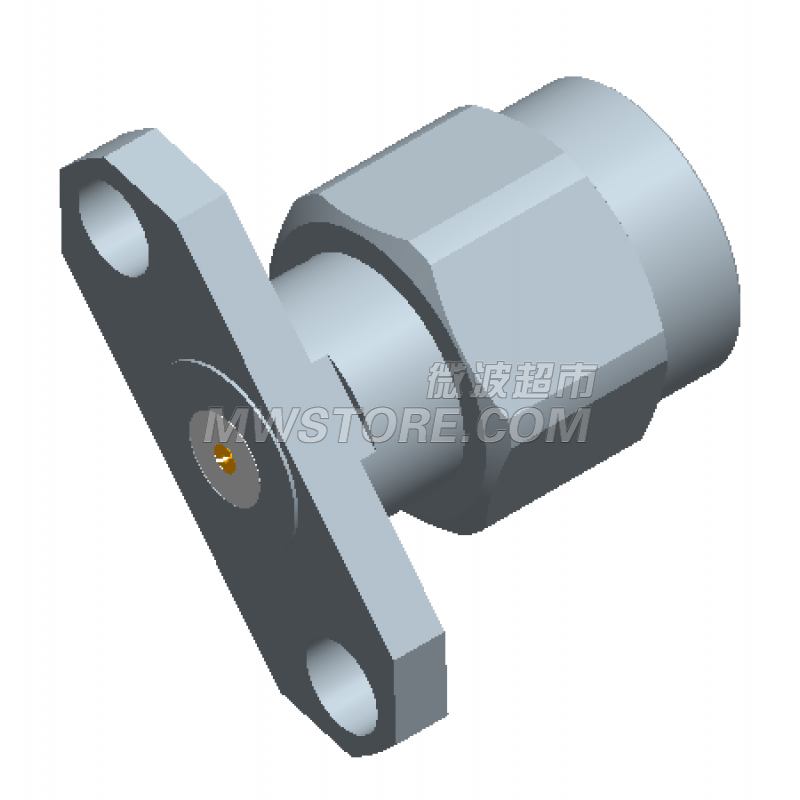

SMA male Field replacebale Connector,2 Hole Flange,Hole Spacing 12.2mm,Accepts 0.46mm Pin

Model:SMA-JFD0446 101305ID:

Price List
$ US Dollar | ¥ 人民币

Qty 1-10 11 -50 51 -200 201 -500 501+
Price ¥35.20 ¥34.50 ¥33.44 ¥32.38 ¥31.68
Price: ¥35.20 /pcs
Qty
- +
Leadtime: 4-7 days
Add to Cart Inquiry Now

SMA male Field replacebale Connector,2 Hole Flange,Hole Spacing 12.2mm,Accepts 0.46mm Pin,Product size information as follow:



Application:




Description
Connector 1 Series SMA
Connector 1 Gender Male
Connector 1 Impedance 50 Ohms
Connector 1 Polarity Standard
Connector 1 Body Material Stainless Steel
Interface Type For PCB
Mount Method 2 Hole Flange
Body Style Straight
Electrical Specifications
Frequency Range DC-26.5G
Environmental Specifications
Temperature Range -55~+165℃
