SMA Female Field replacebale Connector,4 Hole Flange,Hole Spacing 8.6mm,DC-26.5GHz,Accepts 0.46mm Pin

Model:SMA-KFD0146 101245ID:

Price List
$ US Dollar | ¥ 人民币

Qty 1-10 11 -50 51 -200 201 -500 501+
Price ¥28.60 ¥28.03 ¥27.17 ¥26.31 ¥25.74
Price: ¥28.60 /pcs
Qty
- +
Leadtime: 4-7 days
Add to Cart Inquiry Now

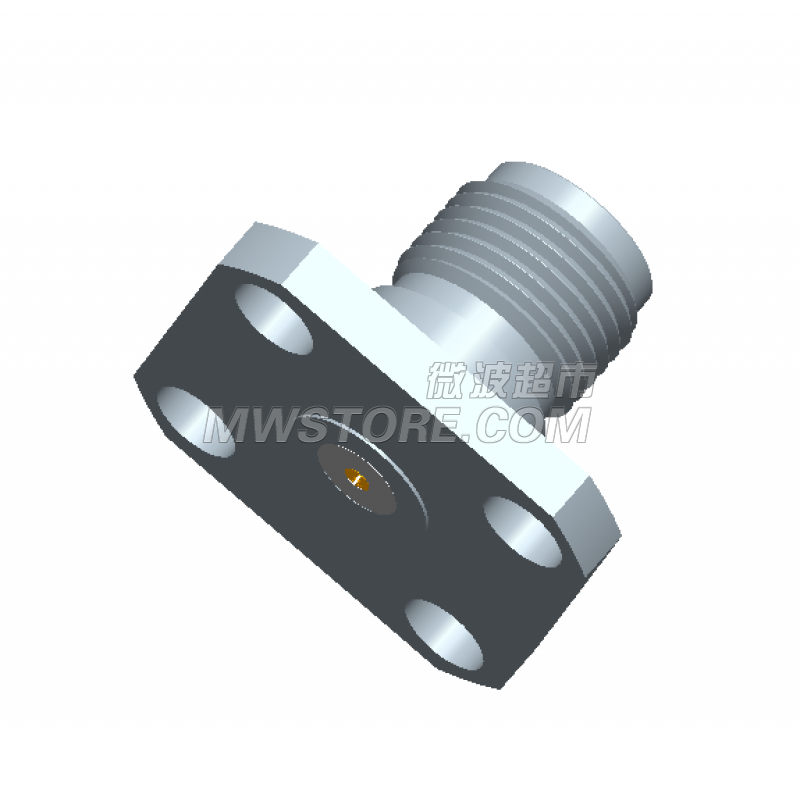

SMA Female Field replacebale Connector,4 Hole Flange,Hole Spacing 8.6mm,DC-26.5GHz,Accepts 0.46mm Pin,Product size information as follow:


Application:



Description
Connector 1 Series SMA
Connector 1 Gender Female
Connector 1 Impedance 50 Ohms
Connector 1 Polarity Standard
Connector 1 Body Material Stainless Steel
Interface Type For PCB
Mount Method 4 Hole Flange
Body Style Straight
Electrical Specifications
Frequency Range DC-26.5G
Environmental Specifications
Temperature Range -55~+165℃
