| Qty | 1-199 | 200 -499 | 500 -999 | 1000 -4999 | 5000+ |
|---|---|---|---|---|---|
| Price | ￥144.00 | ￥141.12 | ￥136.80 | ￥132.48 | ￥129.60 |

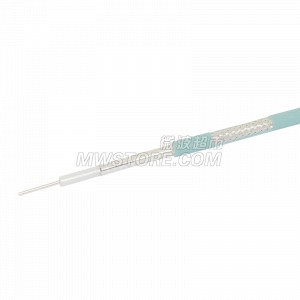

GTRE400 Blue Jacket Lotus Core Coaxial Cable,DC-26.5GHz
| Velocity of Propagation | 76% |
|---|---|
| Shielding Effectiveness, dB @ 1GHz | ＞100dB |
| Amiplitede stabbility | ±0.05dB |
| Frequency Range | DC-26.5G |
| Insertion Loss | See datasheet |
| Temperature Range | -55~+165 |
|---|
| Outer Diameter | 4.05mm |
|---|---|
| Minimum Bend Radius | 19mm |
| Weight （g/m) | 48 g/m |
| Mechanical phase | ±4° |
| Outer Conductor | SPC Ribbon |
|---|---|
| Dielectric | DC PTFE |
| Center Conductor | Silver-Plated copper |
