| Qty | 1-199 | 200 -499 | 500 -999 | 1000 -4999 | 5000+ |
|---|---|---|---|---|---|
| Price | ￥48.00 | ￥47.04 | ￥45.60 | ￥44.16 | ￥43.20 |

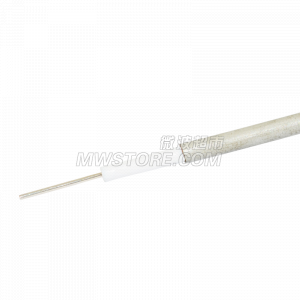

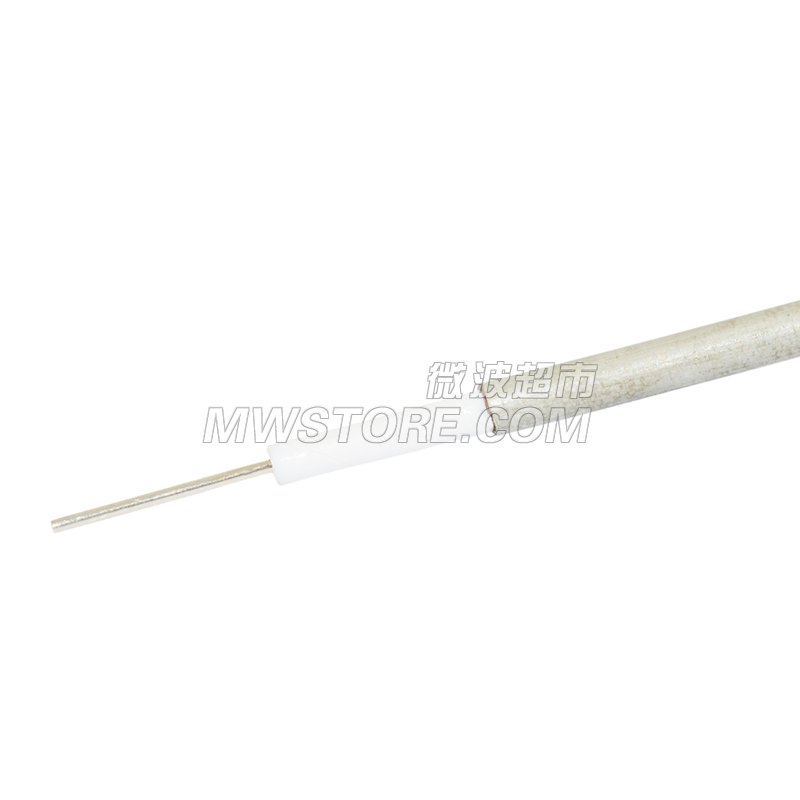

GTBD086 Semi-rigid Coaxial Cable,DC-26.5GHz
| Velocity of Propagation | 81% |
|---|---|
| Shielding Effectiveness, dB @ 1GHz | ＞120dB |
| Amiplitede stabbility | ±0.05dB |
| Frequency Range | DC-26.5G |
| Insertion Loss | See datasheet |
| Temperature Range | -60~+250 |
|---|
| Outer Diameter | 2.1mm |
|---|---|
| Minimum Bend Radius | 7mm |
| Weight （g/m) | 19 g/m |
| Mechanical phase | ±5° |
| Outer Conductor | Seamless Copper Tubing |
|---|---|
| Dielectric | LD PTFE |
| Center Conductor | Silver-Plated copper |
