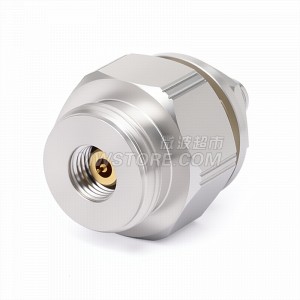

2.4mm NMD Male to 2.4mm Female Bulkhead Straight Precision Adapter | DC to 50 GHz
Description
| Connector 1 Series |
NMD2.4mm |
| Connector 1 Gender |
Male |
| Connector 1 Impedance |
50 Ohms |
| Connector 1 Polarity |
Standard |
| Connector 1 Body Material |
Stainless Steel |
| Connector 2 Series |
2.4mm |
| Connector 2 Gender |
Female |
| Connector 2 Impedance |
50 Ohms |
| Connector 2 Polarity |
Standard |
| Connector 2 Body Material |
Stainless Steel |
| Mount Method |
None |
| Body Style |
Straight |
Electrical Specifications
| Frequency Range |
DC - 50GHz |
| VSWR |
≤1.2 |
| Insertion Loss |
≤ 0.05 xSqt.(f_GHz) |
Environmental Specifications
| Temperature Range |
-55°C to +165°C |
