| Qty | 1-4 | 5 -9 | 10 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥2,400.00 | ￥2,352.00 | ￥2,280.00 | ￥2,208.00 | ￥2,160.00 |

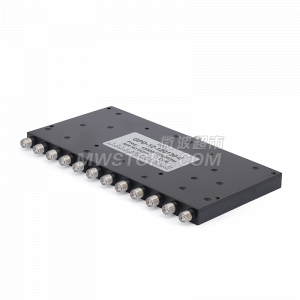

12-Way SMA Power Divider,12-18GHz,10W
| Conn.Type | SMA(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 10W |
| Frequency Range | 12 ~ 18G |
|---|---|
| Input VSWR Max. | 1.38 |
| Output VSWR Max. | 1.25 |
| Isolation Min. | 22dB |
| Amp.Bal. Max. | ±0.8dB |
| Phase Bal. Max. | ±8° |
| Insertion Loss | 2dB |
| Temperature Range | -45 ~ +75℃ |
|---|
