| Qty | 1-5 | 6 -10 | 11 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥4,150.00 | ￥4,067.00 | ￥3,942.50 | ￥3,818.00 | ￥3,735.00 |

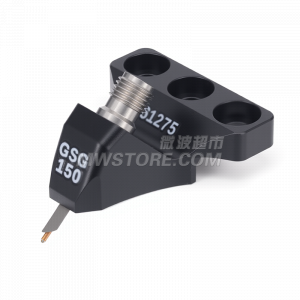

2.92mm female，GSG 50Ω high-frequency probe, DC to 40GHz, 150μm pitch nickel alloy tip.
| Impedance, Ohms | 50 Ω |
|---|---|
| Skating Distance (μm) | 150 um |
| Connector 1 Series | 2.92mm |
| Connector 1 Gender | Female |
| Connector 1 Polarity | Standard |
| Frequency Range | DC-40GHz |
|---|---|
| Return Loss | 15dB |
| Insertion Loss (dB) | ＜0.9 |
