| Qty | 1-4 | 5 -9 | 10 -19 | 20 -29 | 30+ |
|---|---|---|---|---|---|
| Price | ￥3,150.00 | ￥3,087.00 | ￥2,992.50 | ￥2,898.00 | ￥2,835.00 |

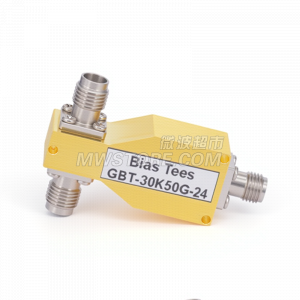

30KHz-50GHz，2.4mm Bias Tee, Rated To 500mA And 25Volts DC，1W
| Connector 1 Series | 2.4mm |
|---|---|
| Connector 1 Gender | Female |
| Connector 2 Series | SMA |
| Connector 2 Gender | Female |
| Power | 1W |
| Maximum rated voltage | 25V |
|---|---|
| maximum rated current | 500mA |
| Frequency Range | 30KHz~50GHz |
| VSWR | <1.50 |
| Insertion Loss | 3dB |
| Temperature Range | -20 ~ +50℃ |
|---|
