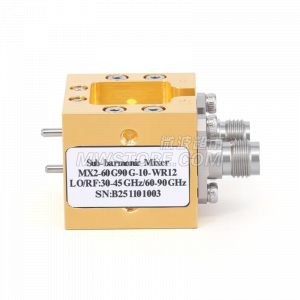

WR12 Sub-Harmonic Mixers ,RF Frequency Range (GHz) 60 ~ 90,LO Frequency Range (GHz) 30 ~ 45,IF Frequency Range (GHz) DC ~ 10，Conversion Loss(dB) @100MHz 10
Description
| Impedance, Ohms |
50Ω |
| Connector Polarity |
Standard |
| Flange Type |
UG387/UM |
| RF Input Power (dBm) |
-10 Typ, 0 Max |
Electrical Specifications
| LO Frequency Range (GHz) |
30 ~ 45GHz |
| IF Frequency Range (GHz) |
DC~10GHz |
| LO Input Power (dBm) |
6~8 |
| RF Connector |
WR12 |
| LO Connector |
2.4mm F |
| IF Connector |
SMA F |
| Frequency Range |
60~90GHz |
Environmental Specifications
| Temperature Range |
+20℃~+30℃ |
