| Qty | 1 | 2 -5 | 6 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥1,800.00 | ￥1,764.00 | ￥1,710.00 | ￥1,656.00 | ￥1,620.00 |

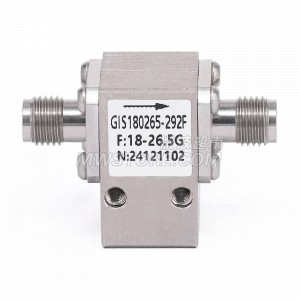

Isolator with 18dB Isolation from 18GHz to 26.5GHz | 10 Watts with 2.92mm Female
| Conn.Type | 2.92(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 10W |
| Frequency Range | 18~26.5GHz |
|---|---|
| Input VSWR Max. | 1.30 |
| Isolation Min. | 18dB |
| Insertion Loss | 0.6dB |
| Temperature Range | -20~70℃ |
|---|
| Outline Dim. | 21x12x14mm |
|---|
