| Qty | 1 | 2 -5 | 6 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥780.00 | ￥764.40 | ￥741.00 | ￥717.60 | ￥702.00 |

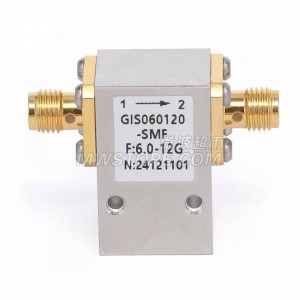

Isolator with 20dB Isolation from 6GHz to 12GHz | 10 Watts with SMA Female
| Conn.Type | SMA(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 10W |
| Frequency Range | 6~12GHz |
|---|---|
| Input VSWR Max. | 1.30 |
| Isolation Min. | 20dB |
| Insertion Loss | 0.4dB |
| Temperature Range | 0 ~ +60℃ |
|---|
| Outline Dim. | 26x16x13mm |
|---|
