| Qty | 1 | 2 -5 | 6 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥1,200.00 | ￥1,176.00 | ￥1,140.00 | ￥1,104.00 | ￥1,080.00 |

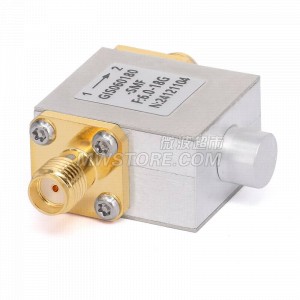

Isolator with 11dB Isolation from 6GHz to 18GHz | 10 Watts with SMA Female
| Conn.Type | SMA(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 10W |
| Frequency Range | 6~18GHz |
|---|---|
| Input VSWR Max. | 1.80 |
| Isolation Min. | 11dB |
| Insertion Loss | 1.5dB |
| Temperature Range | -20~70℃ |
|---|
| Outline Dim. | 22x19x13mm |
|---|
