| Qty | 1 | 2 -5 | 6 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥1,800.00 | ￥1,764.00 | ￥1,710.00 | ￥1,656.00 | ￥1,620.00 |

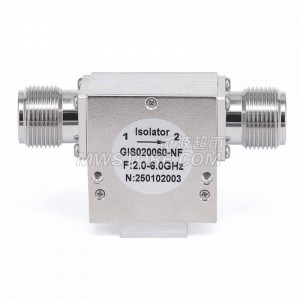

Isolator with 16dB Isolation from 2GHz to 6GHz | 20 Watts with N Female
| Conn.Type | N(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 20W |
| Frequency Range | 2~ 6GHz |
|---|---|
| Input VSWR Max. | 1.40 |
| Isolation Min. | 16dB |
| Insertion Loss | 0.7dB |
| Temperature Range | 0 ~ +60℃ |
|---|
| Outline Dim. | 32x34x18mm |
|---|
