| Qty | 1 | 2 -5 | 6 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥2,550.00 | ￥2,499.00 | ￥2,422.50 | ￥2,346.00 | ￥2,295.00 |

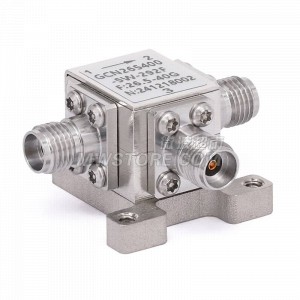

Circulator with 13.8dB Isolation from 26.5GHz to 40GHz | 5Watts with 2.92mm Female
| Conn.Type | 2.92mm(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 5W |
| Frequency Range | 26.5~ 40GHz |
|---|---|
| Input VSWR Max. | <1.65 |
| Isolation Min. | 13.8dB |
| Insertion Loss | <1.4dB |
| Temperature Range | -40 ~ +85℃ |
|---|
