| Qty | 1 | 2 -5 | 6 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥1,800.00 | ￥1,764.00 | ￥1,710.00 | ￥1,656.00 | ￥1,620.00 |

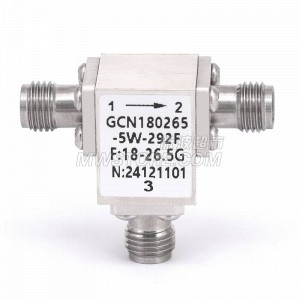

Circulator with 17dB Isolation from 18GHz to 26.5GHz | 5Watts with 2.92mm Female
| CW Power Max. | 5W |
|---|---|
| Impedance, Ohms | 50Ω |
| Conn.Type | 2.92mm(F) |
| Isolation Min. | 17dB |
|---|---|
| Input VSWR Max. | <1.35 |
| Frequency Range | 18~ 26.5GHz |
| Insertion Loss | <0.6dB |
| Temperature Range | -40 ~ +85℃ |
|---|
