| Qty | 1 | 2 -5 | 6 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥1,450.00 | ￥1,421.00 | ￥1,377.50 | ￥1,334.00 | ￥1,305.00 |

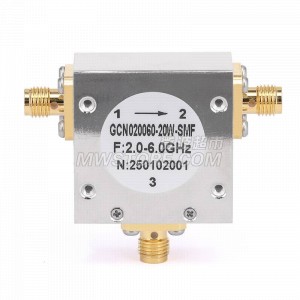

Circulator with 15dB Isolation from 2GHz to 6GHz | 20 Watts with SMA Female
| CW Power Max. | 20W |
|---|---|
| Impedance, Ohms | 50Ω |
| Conn.Type | SMA(F) |
| Isolation Min. | 15dB |
|---|---|
| Input VSWR Max. | <1.45 |
| Frequency Range | 2 ~ 6GHz |
| Insertion Loss | <0.8dB |
| Temperature Range | -40 ~ +85℃ |
|---|
