| Qty | 1 | 2 -5 | 6 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥1,500.00 | ￥1,470.00 | ￥1,425.00 | ￥1,380.00 | ￥1,350.00 |

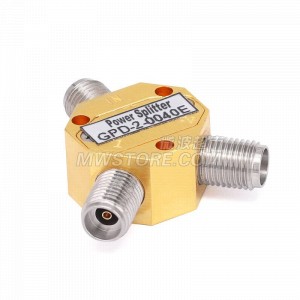

2-Way 2.92mm Power Splitter,DC-40GHz,1W
| Conn.Type | 2.92mm(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 1W |
| Frequency Range | DC ~40G |
|---|---|
| Input VSWR Max. | 1.50 |
| Output VSWR Max. | 2.50 |
| Isolation Min. | 10dB |
| Amp.Bal. Max. | ±0.7dB |
| Phase Bal. Max. | ±7° |
| Insertion Loss | 1.5dB |
| Temperature Range | -35 ~ +75℃ |
|---|
