| Qty | 1 | 2 -5 | 6 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥2,800.00 | ￥2,744.00 | ￥2,660.00 | ￥2,576.00 | ￥2,520.00 |

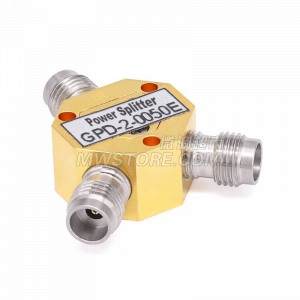

2 -Way 2.4mm Power Splitter,DC-50GHz,1W
| Conn.Type | 2.4mm(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 1W |
| Frequency Range | DC ~50G |
|---|---|
| Input VSWR Max. | 1.60 |
| Output VSWR Max. | 2.50 |
| Isolation Min. | 10dB |
| Amp.Bal. Max. | ±0.7dB |
| Phase Bal. Max. | ±7° |
| Insertion Loss | 1.6dB |
| Temperature Range | -35 ~ +75℃ |
|---|
