| Qty | 1 | 2 -5 | 6 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥5,800.00 | ￥5,684.00 | ￥5,510.00 | ￥5,336.00 | ￥5,220.00 |

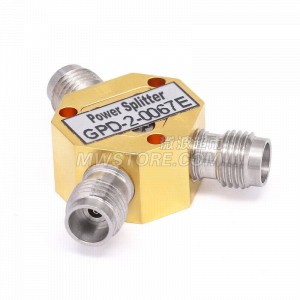

2-Way 1.85mm Power Splitter,DC-67GHz,1W
| Conn.Type | 1.85mm(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 1W |
| Frequency Range | DC ~ 67G |
|---|---|
| Input VSWR Max. | 1.80 |
| Output VSWR Max. | 2.50 |
| Isolation Min. | 10dB |
| Amp.Bal. Max. | ±0.8dB |
| Phase Bal. Max. | ±8° |
| Insertion Loss | 1.8dB |
| Temperature Range | -35 ~ +75℃ |
|---|
