| Qty | 1-4 | 5 -9 | 10 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥1,380.00 | ￥1,352.40 | ￥1,311.00 | ￥1,269.60 | ￥1,242.00 |

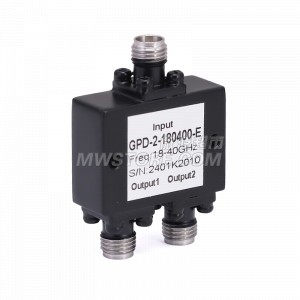

2 Way 2.92mm Power Divider,18-40GHz,20W
| Conn.Type | 2.92mm(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 20W |
| Frequency Range | 18 ~ 40G |
|---|---|
| Input VSWR Max. | 1.50 |
| Output VSWR Max. | 1.50 |
| Isolation Min. | 16dB |
| Amp.Bal. Max. | ±0.4dB |
| Phase Bal. Max. | ±5° |
| Insertion Loss | 2.0dB |
| Temperature Range | -35 ~ +75℃ |
|---|
