| Qty | 1-9 | 10 -49 | 50 -99 | 100 -999 | 1000+ |
|---|---|---|---|---|---|
| Price | ￥748.00 | ￥733.04 | ￥710.60 | ￥688.16 | ￥673.20 |

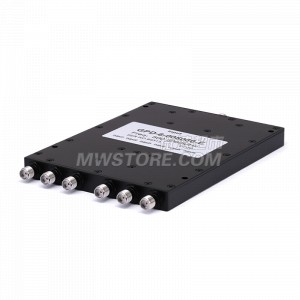

6-Way SMA Power Divider From 0.5GHz to 6GHz Rated at 30 Watts
| Conn.Type | SMA(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 30W |
| Input standing wave | 1.3 |
| output vswr | 1.3 |
| insertion loss | 2.2dB |
| Frequency Range | 0.5 ~ 6G |
|---|---|
| Isolation Min. | 18dB |
| Amp.Bal. Max. | 0.8dB |
| Phase Bal. Max. | ±8° |
| Temperature Range | -35 ~ +75℃ |
|---|
