Typical application fields
- Biomedical Science
- S-band power amplification
- For laboratory testing
Description
| brand |
Tianhua Zhongwei |
| model |

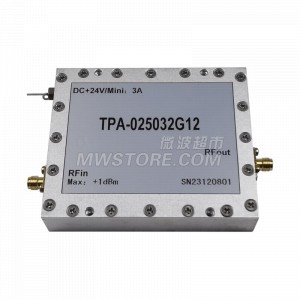

TPA-025032G12 |
Electrical Specifications
| Gain |
44.0dB typ |
| Gain Flatness |
±2.0dB typ |
| P1dB |
41.0dBm typ |
| Limit Voltage |
25.0V |
| Maximum inlet power |
+1dBm |
| ISWR |
1.5:1 |
| OSWR |
1.5:1 |
| working voltage |
+24.0V |
| working current |
2.8A typ (power supply current is not less than 3A) |
| Remarks |
Optional heat sink and isolator |
| Frequency Range |
2.5～3.2GHz |
Environmental Specifications
| working temperature |
-20℃～+70℃ |
| Storage temperature |
-55℃～+100℃ |
MECHANICAL CHARACTERISTICS
| Structural Dimension |
90mm×75mm×18mm |
| weight |
234g |
