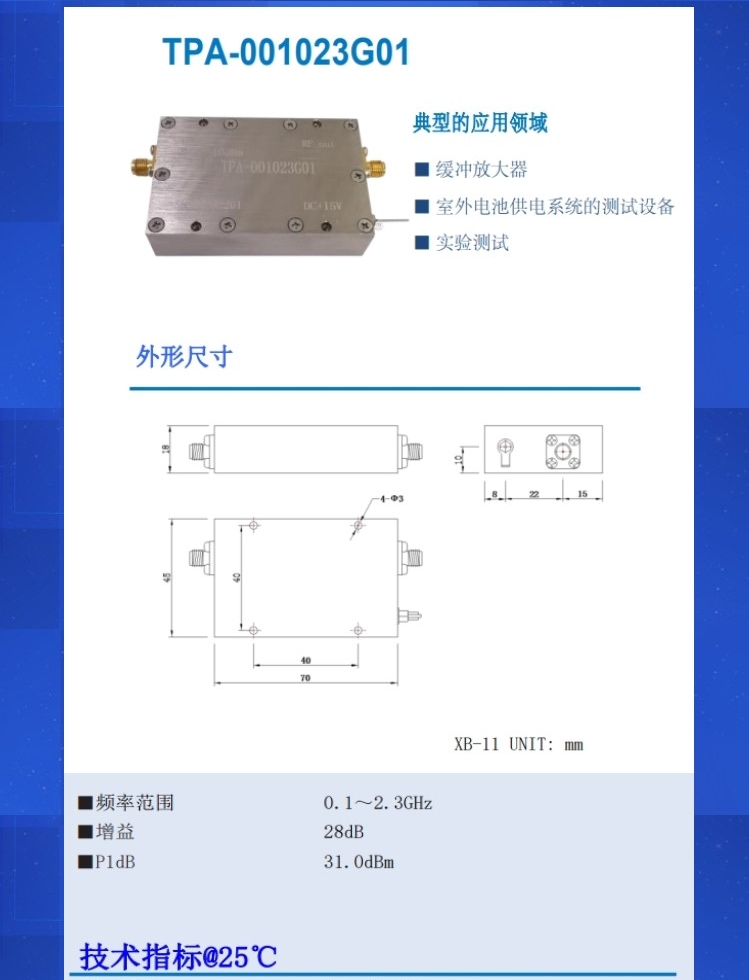

Typical application fields
- buffer amplifier
- Test equipment for outdoor battery power supply system
- Experimental test
Description
| brand |
Tianhua Zhongwei |
| model |

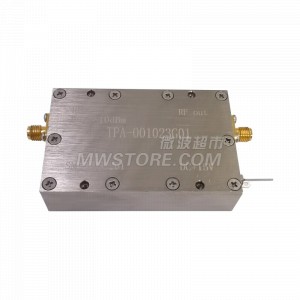

TPA-001023G01 |
Electrical Specifications
| Maximum inlet power |
+10dBm |
| Gain |
28dB |
| Gain Flatness |
±1.0dB typ |
| P1dB |
31.0dBm typ |
| ISWR |
1.5:1 |
| OSWR |
2.0:1 |
| working voltage |
+15.0V |
| working current |
400mA |
| Limit Voltage |
16.0V |
| Frequency Range |
0.1～2.3GHz |
Environmental Specifications
| working temperature |
-40℃～+70℃ |
| Storage temperature |
-55℃～+120℃ |
MECHANICAL CHARACTERISTICS
| weight |
122g |
| Structural Dimension |
70mm×45mm×18mm |
