Typical application fields
- P-band low noise amplification
- Test equipment for outdoor battery power supply system
- Small signal amplifier or preamplifier
- For laboratory testing
Description

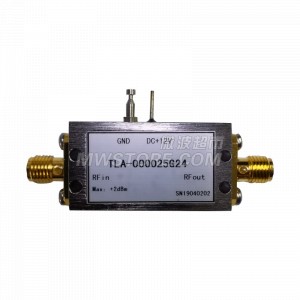

| model |
TLA-000025G24 |
| brand |
Tianhua Zhongwei |
Electrical Specifications
| Maximum inlet power |
+2dBm |
| Limit Voltage |
15V |
| working current |
150mA |
| working voltage |
12.0V |
| OSWR |
2.0:1 |
| ISWR |
2.0:1 |
| Reverse isolation |
-45dB |
| Noise Figure |
4.0dB@2GHz |
| P1dB |
19dBm typ |
| Gain Flatness |
±3.0dB |
| Gain |
24dB typ |
| Frequency Range |
1.0GHz～3.0GHz |
Environmental Specifications
| Storage temperature |
-55℃～100℃ |
| working temperature |
-20℃～70℃ |
MECHANICAL CHARACTERISTICS
| Structural Dimension |
35mm×18.6mm×10.2mm |
| weight |
16g |
