Typical application fields
- Broadband reception
- Test equipment for outdoor battery power supply system
- Small signal amplifier or preamplifier
- Antenna and space broadband reception
Description
| brand |
Tianhua Zhongwei |
| model |

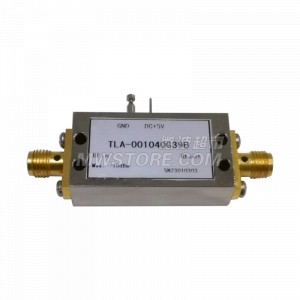

TLA-001040G39B |
Electrical Specifications
| Gain |
39dB typ |
| Gain Flatness |
±2.0dB typ ±4.0dB max |
| P1dB |
18dBm min 20dBm max |
| Noise Figure |
1.5dB@2GHz |
| ISWR |
2.0:1 |
| OSWR |
2.0:1 |
| working voltage |
5.0V |
| working current |
130mA |
| Limit Voltage |
8.0V |
| Maximum inlet power |
-10dBm |
| Frequency Range |
0.1GHz～4.0GHz |
Environmental Specifications
| working temperature |
-20℃～70℃ |
| Storage temperature |
-55℃～100℃ |
MECHANICAL CHARACTERISTICS
| Structural Dimension |
35mm×18.6mm×10.2mm |
| weight |
16g |
