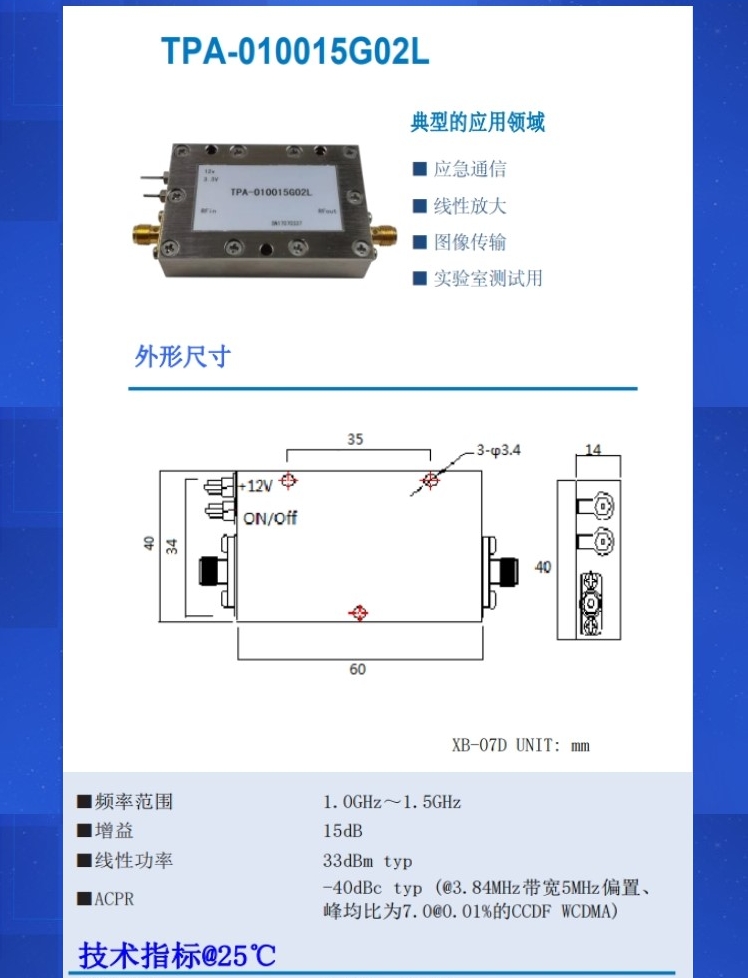

Typical application fields
- emergency communication
- Linear amplification
- picture transmission
- For laboratory testing
Description
| brand |
Tianhua Zhongwei |
| model |

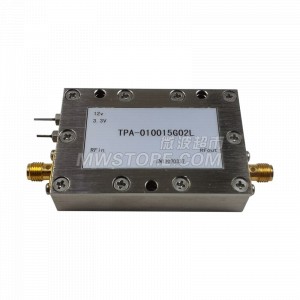

TPA-010015G02L |
| Connector 1 Series |
SMA |
| Connector 1 Gender |
Female |
| Connector 2 Series |
SMA |
| Connector 2 Gender |
Female |
| Power |
-- |
Electrical Specifications
| Gain |
15dB |
| P3dB |
41dBm typ |
| Voltage |
12.0V typ 15.0V max |
| Maximum Input Power |
+27dBm |
| ACPR |
-40dBc typ(@3.84MHz) |
| In-band fluctuation |
2dB max |
| Input-output return loss |
-10dB min -15dB typ |
| Linear power |
33dBm typ |
| Off isolation |
30dB min 35dB typ |
| Work efficiency @Pout=2W |
13% |
| Input level (high/low) |
3.3V/0.0V |
| Switching time (on/off) |
5.0us |
| Frequency Range |
1.0GHz～1.5GHz |
Environmental Specifications
| Storage temperature |
-40℃～100℃ |
| Relative Humidity |
≤95% (no condensation) |
| Temperature Range |
-40~70℃ |
MECHANICAL CHARACTERISTICS
| Weight |
-- |
MATERIALS
| Structural Dimension |
60mm×40mm×14mm |
