Typical application fields
- P band low noise amplification
- Test equipment for outdoor battery power supply system
- Small signal amplifier or preamplifier
- For laboratory testing
Description
| model |

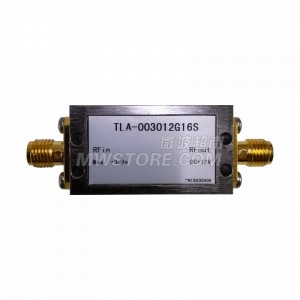

TLA-003012G16S |
| brand |
Tianhua Zhongwei |
Electrical Specifications
| Maximum inlet power |
+3dBm |
| Limit Voltage |
13V |
| working current |
100mA |
| working voltage |
12.0V |
| OSW |
-10dB max |
| ISW |
-10dB max |
| Noise Figure |
0.8dB typ 1.2dB max |
| P1dB |
12dBm typ 15dBm max |
| Gain Flatness |
±2.5dB typ ±3dB max |
| Gain |
16dB typ |
| Frequency Range |
0.3～1.2GHz |
Environmental Specifications
| Storage temperature |
-40℃～100℃ |
| working temperature |
-40℃～70℃ |
MECHANICAL CHARACTERISTICS
| Structural Dimension |
35mm×18.6mm×10.2mm |
| weight |
15.9g |
