Typical application fields
- UHF band low noise amplification
- Test equipment for outdoor battery power supply system
- Small signal amplifier or preamplifier
- For laboratory testing

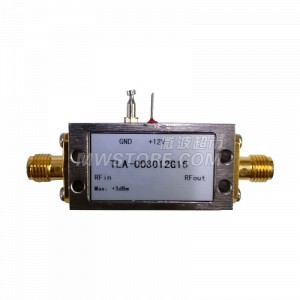

Description
| brand |
Tianhua Zhongwei |
| model |
TLA-003012G16 |
Electrical Specifications
| working current |
100mA |
| Limit Voltage |
13V |
| Maximum inlet power |
+3dBm |
| Gain |
16dB typ |
| Gain Flatness |
±2.5dB typ |
| P1dB |
12dBm typ |
| OIP3 |
22dBm |
| Noise Figure |
0.8dB |
| ISWR |
1.5:1 |
| OSWR |
1.5:1 |
| working voltage |
12.0V |
| Frequency Range |
0.3～1.2GHz |
Environmental Specifications
| working temperature |
-20℃～70℃ |
| Storage temperature |
-55℃～100℃ |
MECHANICAL CHARACTERISTICS
| weight |
18g |
| Structural Dimension |
35mm×18.6mm×10.2mm |
