Typical application fields
- uav system
- mobile communication
- Networking
Description
| brand |
Tianhua Zhongwei |

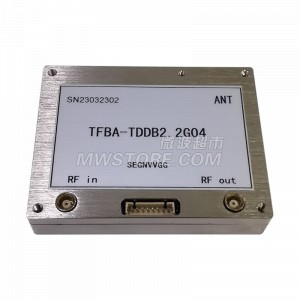

| model |
TFBA-TDDB2.2G04 |
| Connector 1 Series |
SMA |
| Connector 1 Gender |
Female |
| Connector 2 Series |
SMA |
| Connector 2 Gender |
Female |
| Power |
-- |
Electrical Specifications
| Noise Figure |
≤2.5dB |
| Gain Flatness |
≤±1.0dB |
| Transmit gain |
≥47.5±1dB |
| switching time |
≤10us |
| Receiving limited output power |
0dBm |
| Receiving gain |
39dB |
| Stray suppression |
≤60dBc |
| Power supply/enable/current |
DC +12V/DC 3.3V/1.9A |
| Emission output power |
≥36dBm |
| transmit maximum input |
-8dBm |
| I/OSW |
1.5dB |
| Frequency Range |
816±5MHz |
Environmental Specifications
| Storage temperature |
-40℃～80℃ |
| 相对湿度 |
≤95%（Non-condensation） |
| Temperature Range |
-40℃～60℃ |

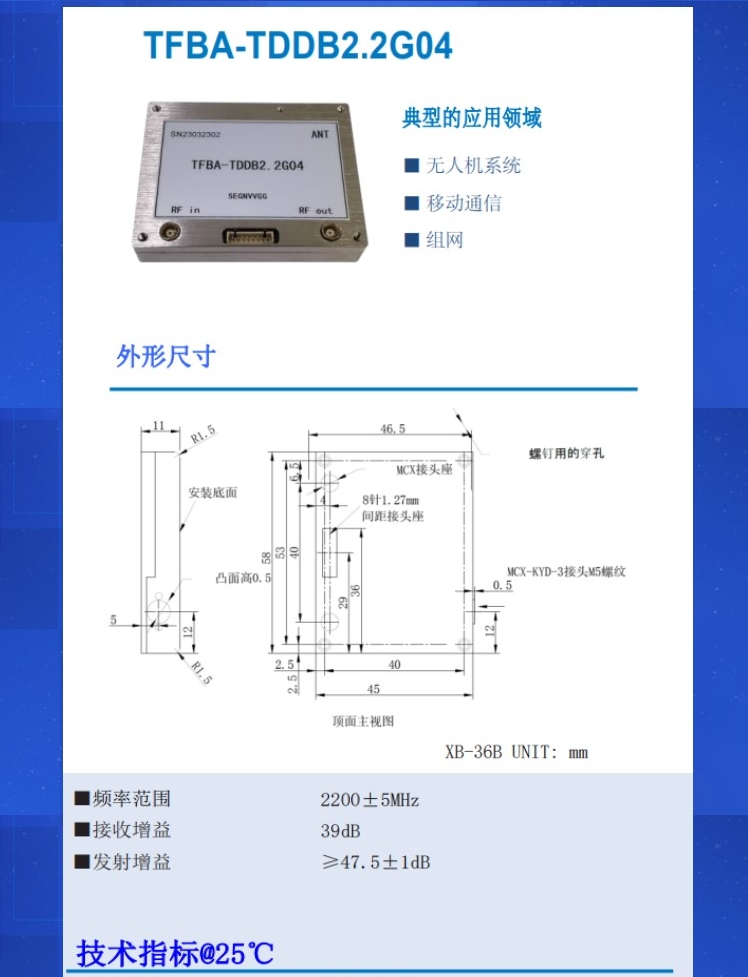

MECHANICAL CHARACTERISTICS
| Weight |
60g |
| Structural Dimension |
58mm×45mm×11mm |
