| Qty | 1-9 | 10 -19 | 20 -49 | 50+ |
|---|---|---|---|---|
| Price | ￥1,800.00 | ￥1,710.00 | ￥1,620.00 | ￥1,584.00 |
| brand | Tianhua Zhongwei |
|---|---|

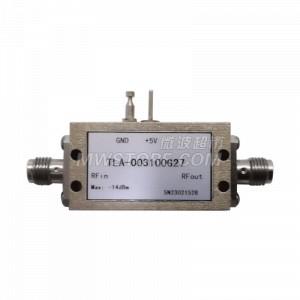

| model | TLA-003100G27 |
| Gain | 30dB typ |
|---|---|
| Noise Figure | 4.5dB |
| Gain Flatness | ±2.0dB typ |
| P1dB | 16dBm typ |
| Limit Voltage | 5V |
| Maximum inlet power | -14dBm |
| ISWR | 2.5:1 typ 3.0:1 max |
| OSWR | 2.5:1 typ 3.0:1 max |
| working voltage | 5.0V |
| working current | 170mA typ |
| Frequency Range | 0.3～10.0GHz |
| working temperature | -20℃～70℃ |
|---|---|
| Storage temperature | -55℃～100℃ |

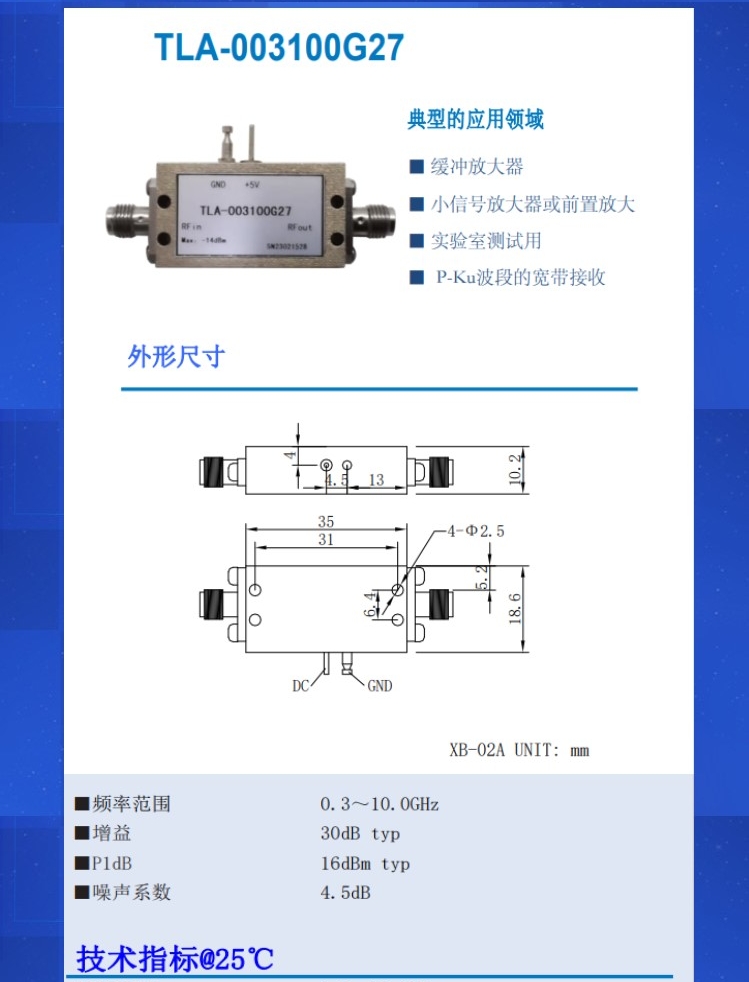

| Structural Dimension | 35mm×18.6mm×10.2mm |
|---|---|
| weight | 18g |
