Typical application fields
- Biomedical Science
- Broadband emission
- power amplification
- Experimental test

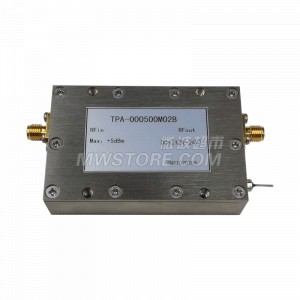

Description
| brand |
Tianhua Zhongwei |
| model |
TPA-000500M02B |
Electrical Specifications
| Gain |
32dB typ |
| Gain Flatness |
±1.0dB |
| P1dB |
33dBm In the whole frequency range |
| Voltage |
24.0V |
| Current |
260mA |
| Limit Voltage |
25.0V |
| Maximum Input Power |
+5dBm |
| High output power |
2W typ |
| Input-output standing wave |
1.5:1 |
| Input-output return loss |
-15dB typ |
| Frequency Range |
10kHz～500MHz |
Environmental Specifications
| Operating Temperature |
-20℃～+70℃ |
| Storage temperature |
-55℃～+100℃ |

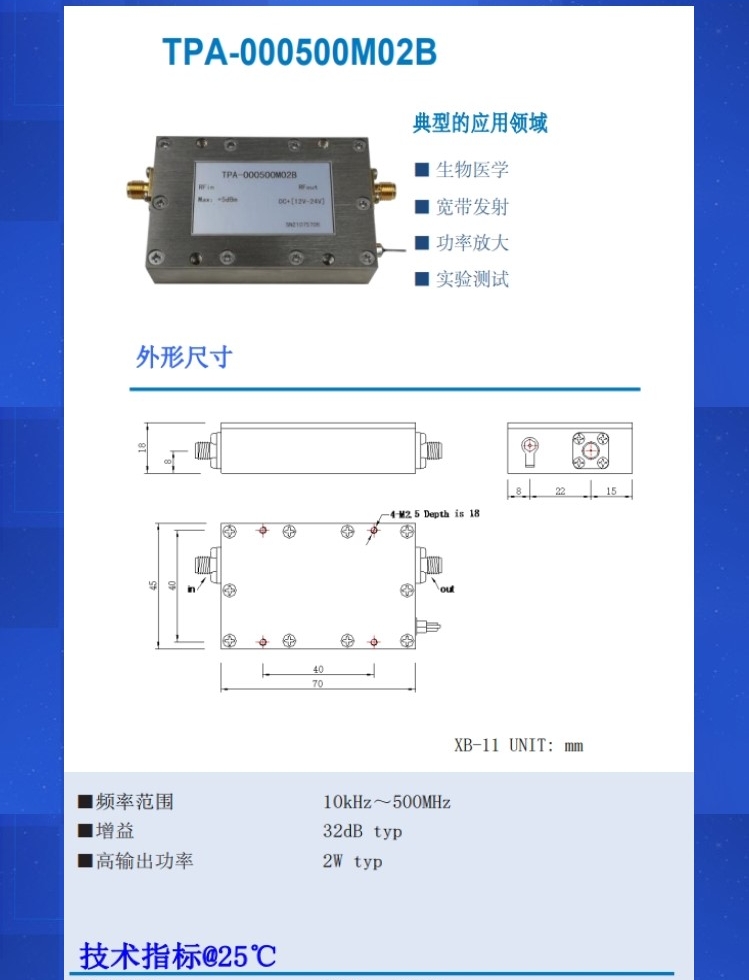

MECHANICAL CHARACTERISTICS
| Structural Dimension |
70mm×45mm×18mm |
| weight |
68g |
