Typical application fields
- P-band push amplification
- Test equipment for outdoor battery power supply system
- Small signal amplifier or preamplifier
- For laboratory testing
Description

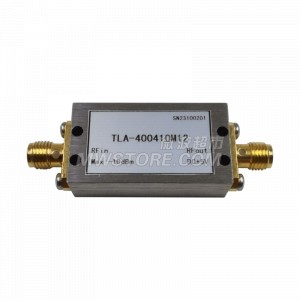

| model |
TLA-400410M12 |
| brand |
Tianhua Zhongwei |
Electrical Specifications
| Maximum inlet power |
15dBm |
| Limit Voltage |
6.0V |
| working current |
80mA |
| working voltage |
5.0V(Internal feedback voltage) |
| OSWR |
2.0:1 |
| ISWR |
2.0:1 |
| Noise Figure |
0.8dB@900MHz typ |
| P1dB |
13dBm typ |
| Gain Flatness |
±1.0dB typ |
| Gain |
12dB typ |
| Frequency Range |
400MHz～410MHz |
Environmental Specifications
| Storage temperature |
-55℃～100℃ |
| working temperature |
-20℃～70℃ |
MECHANICAL CHARACTERISTICS
| Structural Dimension |
35mm×18.6mm×10.2mm |
| weight |
18g |
