| Qty | 1-10 | 11 -50 | 51 -200 | 201 -500 | 501+ |
|---|---|---|---|---|---|
| Price | ￥5.00 | ￥4.90 | ￥4.75 | ￥4.60 | ￥4.50 |

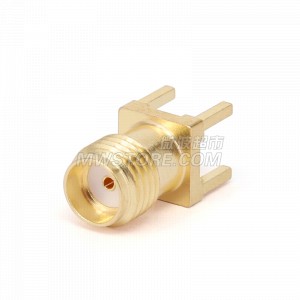

SMA Female End Launch Connector,Solder Attachment Thru Hole PCB，Hole Spacing 5.1mm，DC-6GHz
| Connector 1 Series | SMA |
|---|---|
| Connector 1 Gender | Female |
| Connector 1 Impedance | 50 Ω |
| Connector 1 Polarity | Standard |
| Connector 1 Body Material | Brass Gold Plated |
| Interface Type | For PCB |
| Mount Method | None |
| Body Style | Straight |
| Frequency Range | DC-6GHz |
|---|---|
| VSWR | 1.20 |
| Temperature Range | -40℃~+125℃ |
|---|
