Introduction

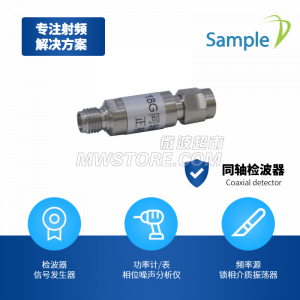

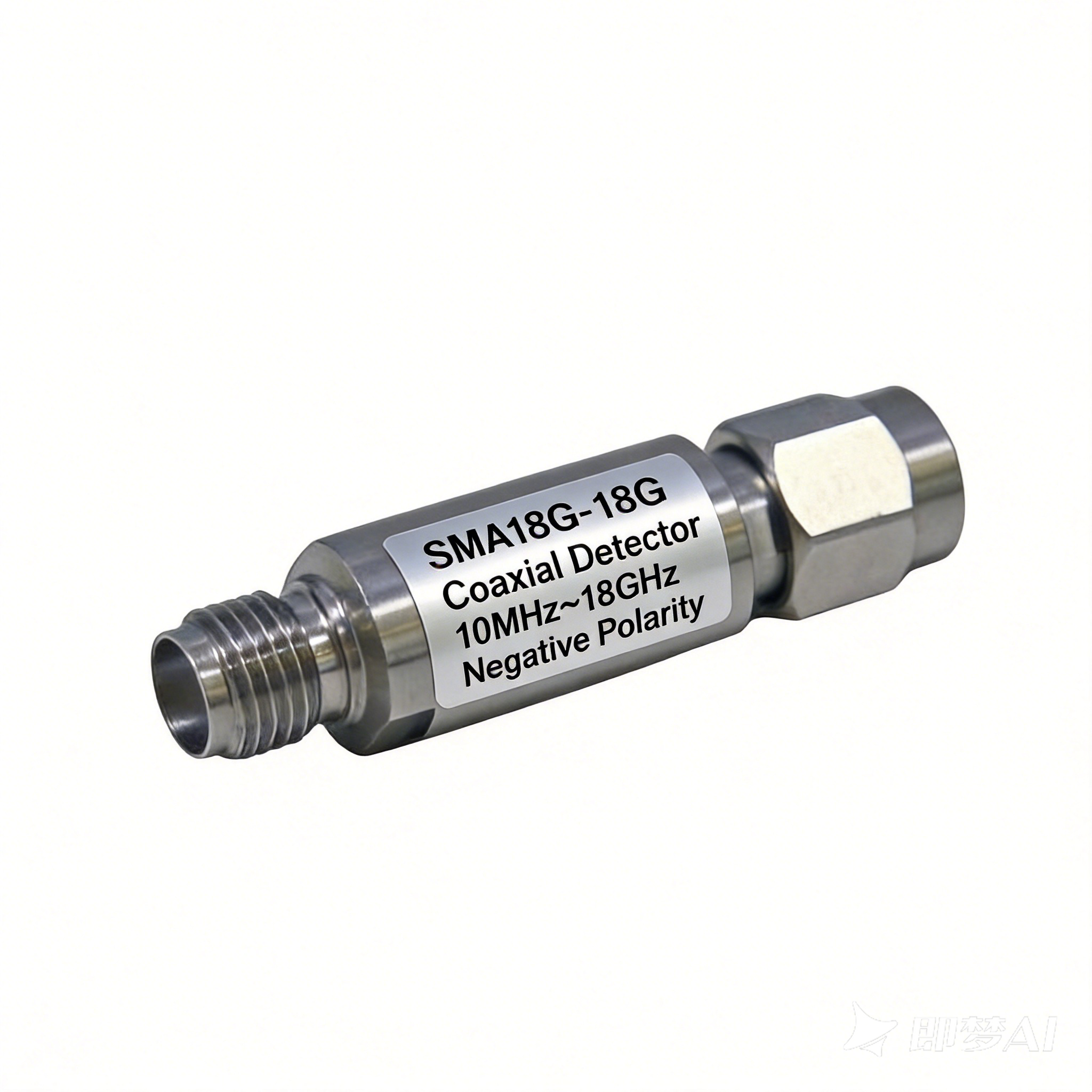

Sample Technology’s SMA series coaxial detectors are suitable for power detection, video detection, signal source amplitude leveling, and swept-frequency measurements of transmission and reflection in various military or civilian electronic equipment, including communications, radar, electronic countermeasures, navigation, and microwave measurements. Utilizing low barrier Schottky diodes as detection components, these detectors feature SMA coaxial inputs and offer either positive or negative polarity voltage outputs. They deliver excellent performance, including compact size, high sensitivity, fast response time, superior frequency response, and wide operating bandwidth

Features

• Frequency Range：10 MHz~40 GHz

• Power, Max Input：+20 dBm（100 mW）

• Voltage Sensitivity, Min：≥0.35 mV@-30dBm

• Rising Time：≤7 ns

• Size：Ø9.0×30.5 mm@40 GHz

Specifications
