| Qty | 1 | 2 -5 | 6 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥2,100.00 | ￥2,058.00 | ￥1,995.00 | ￥1,932.00 | ￥1,890.00 |

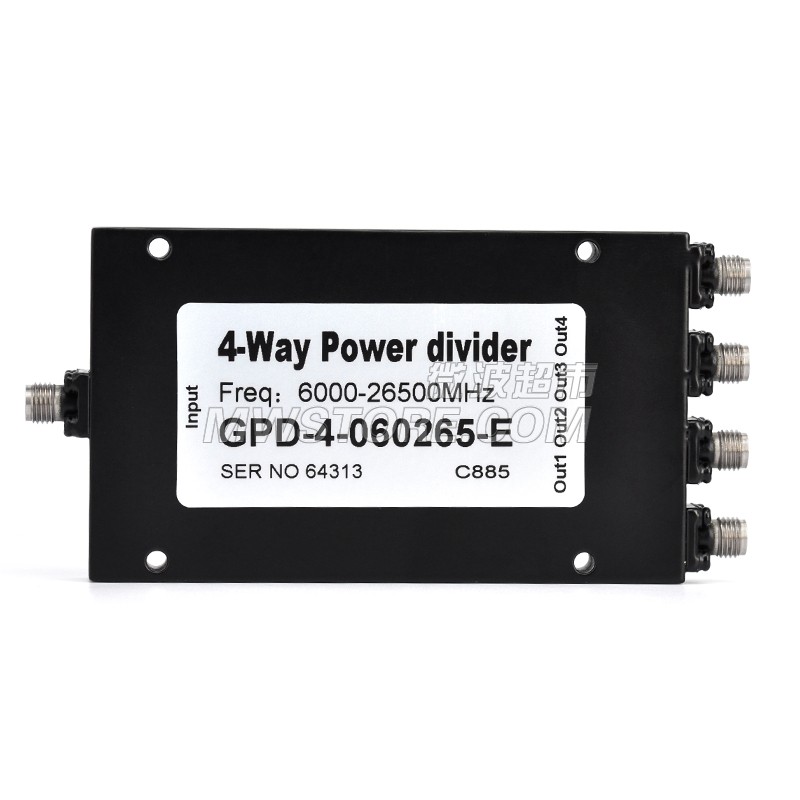

4 Way 2.92mm Power Divider,6-26.5GHz
| Conn.Type | SMA(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 20W |
| Peak Power Max. | 1kW |
| Frequency Range | 6 ~ 26.5G |
|---|---|
| Input VSWR Max. | 1.5 |
| Output VSWR Max. | 1.5 |
| Isolation Min. | 18dB |
| Amp.Bal. Max. | ±0.4dB |
| Phase Bal. Max. | ±4° |
| Insertion Loss | 1.5dB |
| Temperature Range | -35 ~ +105℃ |
|---|
