| Qty | 1 | 2 -5 | 6 -20 | 21 -50 | 51+ |
|---|---|---|---|---|---|
| Price | ￥2,300.00 | ￥2,254.00 | ￥2,185.00 | ￥2,116.00 | ￥2,070.00 |

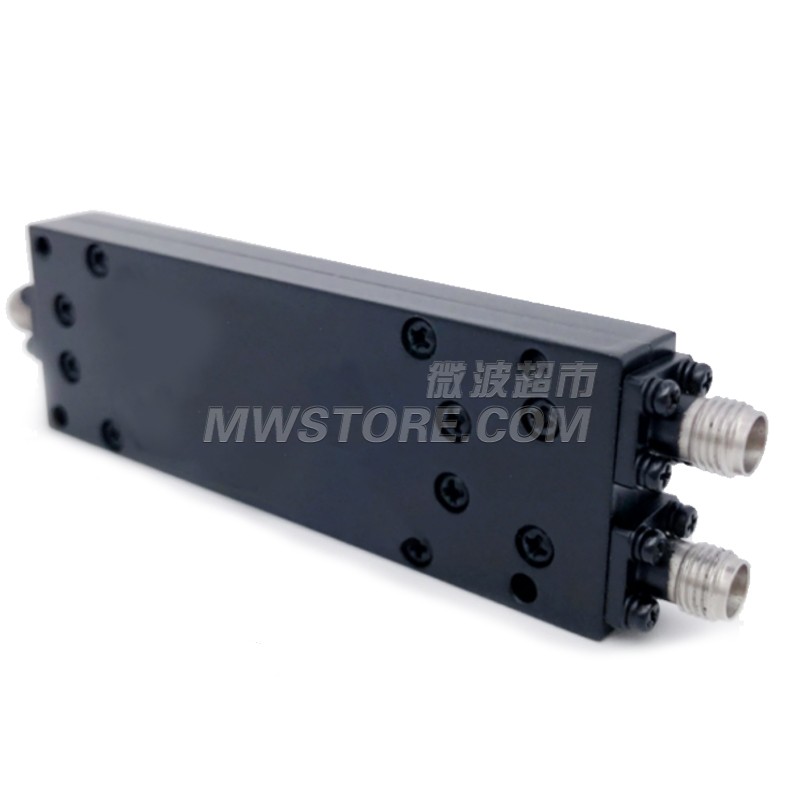

2 Way 2.92mm Power Divider,2-40GHz,20W，Economic
| Conn.Type | 2.92mm(F) |
|---|---|
| Impedance, Ohms | 50Ω |
| CW Power Max. | 20 Splitter/ 1 Combiner |
| Frequency Range | 2 ~ 40G |
|---|---|
| Input VSWR Max. | 1.6 |
| Output VSWR Max. | 1.6 |
| Isolation Min. | Typ.22,min.18 |
| Amp.Bal. Max. | ±0.4dB |
| Phase Bal. Max. | ±4° |
| Insertion Loss | 1.6dB |
| Temperature Range | -45 ~ +85ºC |
|---|
