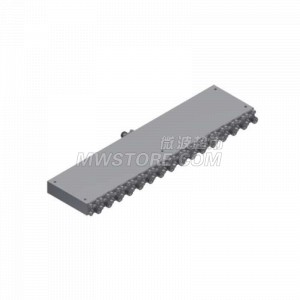

16 Way Power Divider 1.85mm Connector，40-67GHz,12W
| Impedance, Ohms | 50 Ω |
|---|---|
| Peak Power Max. | 1kW |
| Conn.Type | 1.85mm(F) |
| CW Power Max. | 12W |
| Phase Bal. Max. | ±16° |
|---|---|
| Amp.Bal. Max. | ±1.4dB |
| Isolation Min. | 15 dB |
| Output VSWR Max. | 2.0 |
| Input VSWR Max. | 2.0 |
| Frequency Range | 40~67G |
| Insertion Loss | 8.3dB |
| Temperature Range | -55 ~ +85℃ |
|---|
| Outline Dim. | 36x210x12.7mm |
|---|
