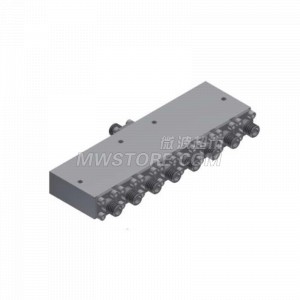

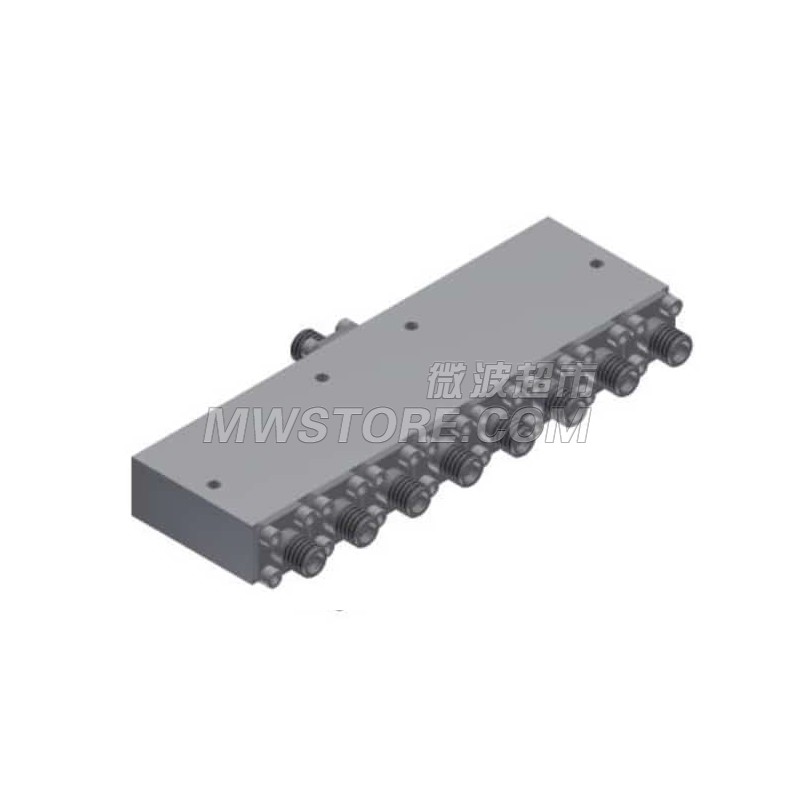

8 Way Power Divider 1.85mm Connector,40-67GHz,12W

Model:GPD-8-400670 193393ID:

Price List
$ US Dollar | ¥ 人民币

Qty 1 2 -5 6 -20 21 -50 51+
Price ¥--- ¥--- ¥--- ¥--- ¥---
Price: ¥---
Qty
- +
Leadtime: 8-15 days
Add to Cart Inquiry Now

8 Way Power Divider 1.85mm Connector,40-67GHz,12W

Description
Conn.Type 1.85 mm(F)
Impedance, Ohms 50 Ω
CW Power Max. 12W
Peak Power Max. 1kW
Electrical Specifications
Frequency Range 40~67G
Input VSWR Max. 1.9
Output VSWR Max. 1.9
Isolation Min. 16 dB
Amp.Bal. Max. ±1dB
Phase Bal. Max. ±12°
Insertion Loss 5.9dB
Environmental Specifications
Temperature Range -55~+85℃
MECHANICAL CHARACTERISTICS
Outline Dim. 30x103.7x12.7mm
