All Categories >Power Dividers/Combiners/Couplers/Hybrids >Power Dividers/Combiners >2 Way Power Dividers >2 Way Power Divider 1.85mm Connector,26.5-67GHz,12W

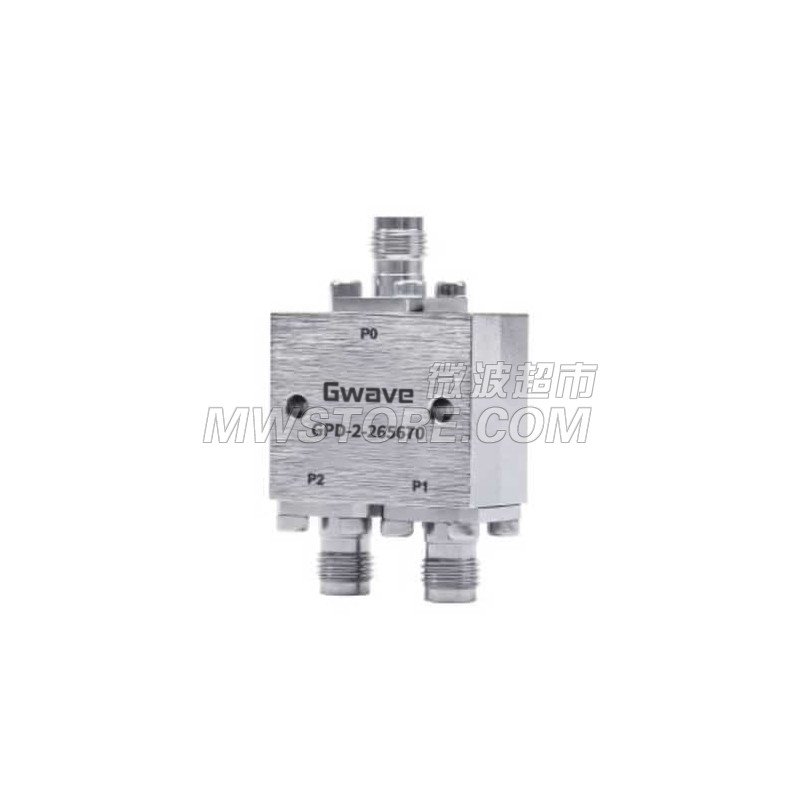

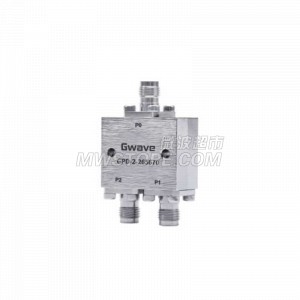

2 Way Power Divider 1.85mm Connector,26.5-67GHz,12W

Model:GPD-2-265670 193387ID:

Price List
$ US Dollar | ¥ 人民币

Qty 1 2 -5 6 -20 21 -50 51+
Price ¥--- ¥--- ¥--- ¥--- ¥---
Price: ¥---
Qty
- +
Leadtime: 8-15 days
Add to Cart Inquiry Now

2 Way Power Divider 1.85mm Connector,26.5-67GHz,12W

Description
Peak Power Max. 1kW
CW Power Max. 12W
Impedance, Ohms 50 Ω
Conn.Type 1.85 mm(F)
Electrical Specifications
Phase Bal. Max. ±8°
Amp.Bal. Max. ±0.6dB
Isolation Min. 18 dB
Output VSWR Max. 1.8
Input VSWR Max. 1.8
Frequency Range 26.5~67G
Insertion Loss 2.1dB
Environmental Specifications
Temperature Range -55 ~ +85℃
MECHANICAL CHARACTERISTICS
Outline Dim. 15.2x25.4x10mm
