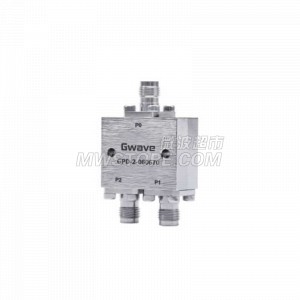

2 Way Power Divider 1.85mm Connector,6-67GHz,12W

Model:GPD-2-060670 193383ID:

Price List
$ US Dollar | ¥ 人民币

Qty 1 2 -5 6 -20 21 -50 51+
Price ¥--- ¥--- ¥--- ¥--- ¥---
Price: ¥---
Qty
- +
Leadtime: 8-15 days
Add to Cart Inquiry Now

2 Way Power Divider 1.85mm Connector,6-67GHz,12W

Description
Conn.Type 1.85 mm(F)
Impedance, Ohms 50 Ω
CW Power Max. 12W
Peak Power Max. 1kW
Electrical Specifications
Frequency Range 6~67G
Input VSWR Max. 1.8
Isolation Min. 18 dB
Amp.Bal. Max. ±0.6dB
Phase Bal. Max. ±8°
Output VSWR Max 1.8
Insertion Loss 2.6dB
Environmental Specifications
Temperature Range -55 ~ +85℃
MECHANICAL CHARACTERISTICS
Outline Dim. 29.2x26.9x12.7mm
