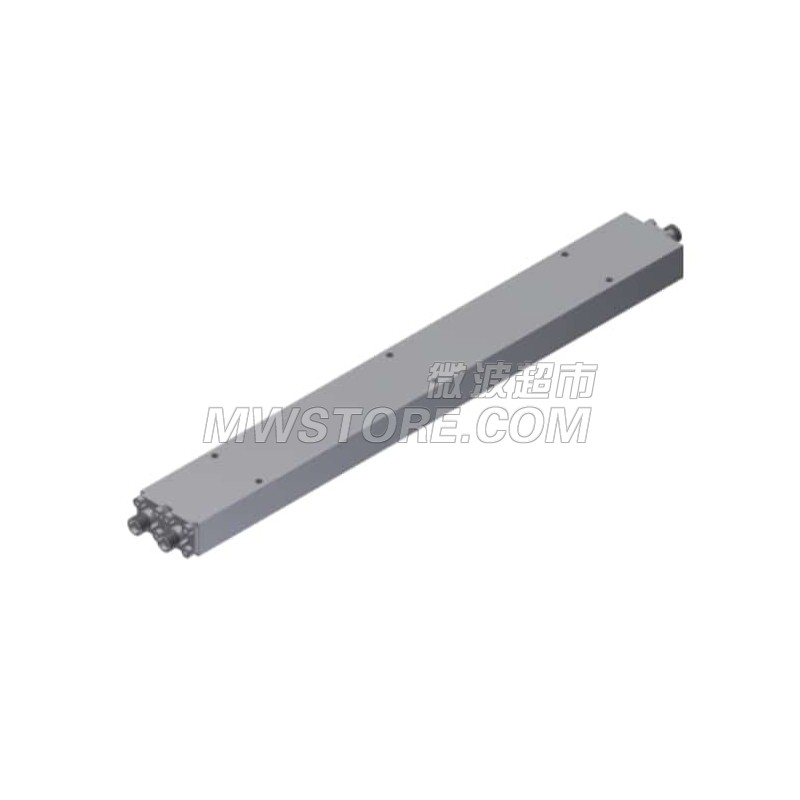

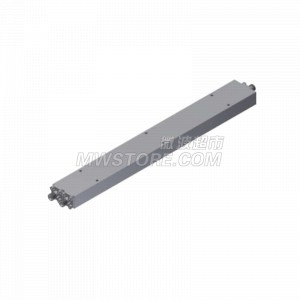

2 Way Power Divider 1.85mm Connector,0.3-67GHz,12W
| Peak Power Max. | 1kW |
|---|---|
| CW Power Max. | 12W |
| Impedance, Ohms | 50 Ω |
| Conn.Type | 1.85mm(F) |
| Phase Bal. Max. | ±9° |
|---|---|
| Isolation Min. | 18 dB |
| Output VSWR Max. | 1.9 |
| Input VSWR Max. | 1.9 |
| Frequency Range | 0.03~67G |
| Insertion Loss | 8.2dB |
| Temperature Range | -55 ~ +85℃ |
|---|
| Outline Dim. | 216.5*25.8*12.7mm |
|---|
