All Categories >RF Connector >N >Field Replaceable Connector >N Female Field Replaceable connector with 4-hole Flange,Hole Spacing 8.6mm, Accepts Φ0.46mm Pin,DC-18GHz

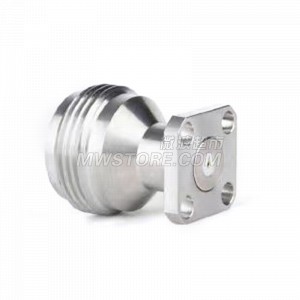

N Female Field Replaceable connector with 4-hole Flange,Hole Spacing 8.6mm, Accepts Φ0.46mm Pin,DC-18GHz

Model:N-KFD0146 193363ID:

Price List
$ US Dollar | ¥ 人民币

Qty 1-10 11 -50 51 -200 201 -500 501+
Price ¥95.00 ¥93.10 ¥90.25 ¥87.40 ¥85.50
Price: ¥95.00 /pcs
Qty
- +
Leadtime: 4-7 days
Add to Cart Inquiry Now

N Female Field Replaceable connector with 4-hole Flange,Hole Spacing 8.6mm, Accepts Φ0.46mm Pin,DC-18GHz


Description
Connector 1 Series N
Connector 1 Gender Female
Connector 1 Impedance 50 Ω
Connector 1 Polarity Standard
Connector 1 Body Material Stainless Steel
Interface Type For PCB
Mount Method 4 Hole Flange
Body Style Straight
Electrical Specifications
Frequency Range DC-18GHz
Environmental Specifications
Temperature Range -40°C to +165°C
