Typical application fields
- The promotion of high power linear power amplifier
- Small signal linear enhancement
- Final stage of portable digital image transmitting equipment
- Portable wireless transmission equipment
Description
| model |

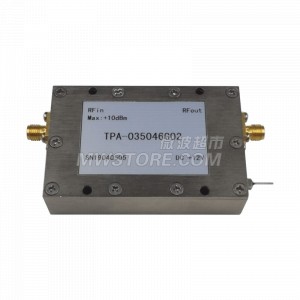

TPA-035046G02 |
| working voltage |
Tianhua Zhongwei |
| Connector 1 Series |
SMA |
| Connector 1 Gender |
Female |
| Connector 2 Series |
SMA |
| Connector 2 Gender |
Female |
| Power |
-- |
Electrical Specifications
| Gain |
35.0dB typ |
| Gain Flatness |
±2.0dB typ |
| P1dB |
33.0dBm |
| ISWR |
2.0:1 |
| OSWR |
2.0:1 |
| Voltage |
12.0V |
| Current |
1A |
| Limit Voltage |
13.0V |
| Maximum Input Power |
+10dBm |
| Frequency Range |
3.5～4.6GHz |
Environmental Specifications
| Storage temperature |
-55℃～+100℃ |
| Temperature Range |
-20℃～+70℃ |
MECHANICAL CHARACTERISTICS
| Weight |
-- |
| Structural Dimension |
70mm×45mm×18mm |
