Typical application fields
- Biomedical Science
- Broadband emission
- power amplification
- Experimental test
Description
| brand |
Tianhua Zhongwei |
| model |

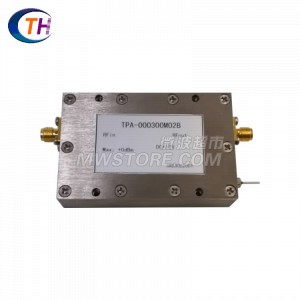

TPA-000300M02B |
| Connector 1 Series |
SMA |
| Connector 1 Gender |
母 |
| Connector 2 Series |
SMA |
| Connector 2 Gender |
母 |
| Power |
2W typ |
Electrical Specifications
| Gain |
32dB typ |
| Gain Flatness |
±1.0dB |
| P1dB |
33dBm |
| ISWR |
1.5:1 |
| OSWR |
1.5:1 |
| Voltage |
+24V |
| Current |
260mA |
| Limit Voltage |
+25V |
| Output rating |
1.5:1 |
| Maximum Input Pow |
+3dBm |
| Frequency Range |
0.01～300MHz |
Environmental Specifications
| Storage temperature |
-55°C ～ 100°C |
| Temperature Range |
-20~70℃ |

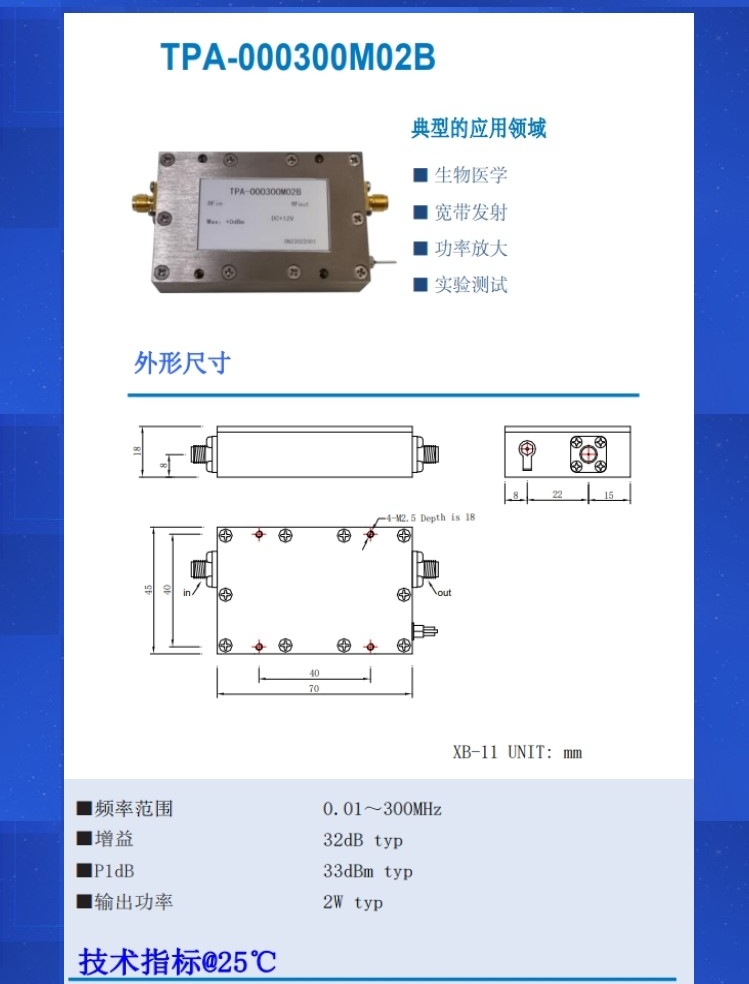

MECHANICAL CHARACTERISTICS
| Weight |
117g |
| Structural Dimension |
70mm×45mm×18mm |
