Typical application fields
- buffer amplifier
- Test equipment for outdoor battery power supply system
- For laboratory testing
Description
| brand |
Tianhua Zhongwei |
| model |

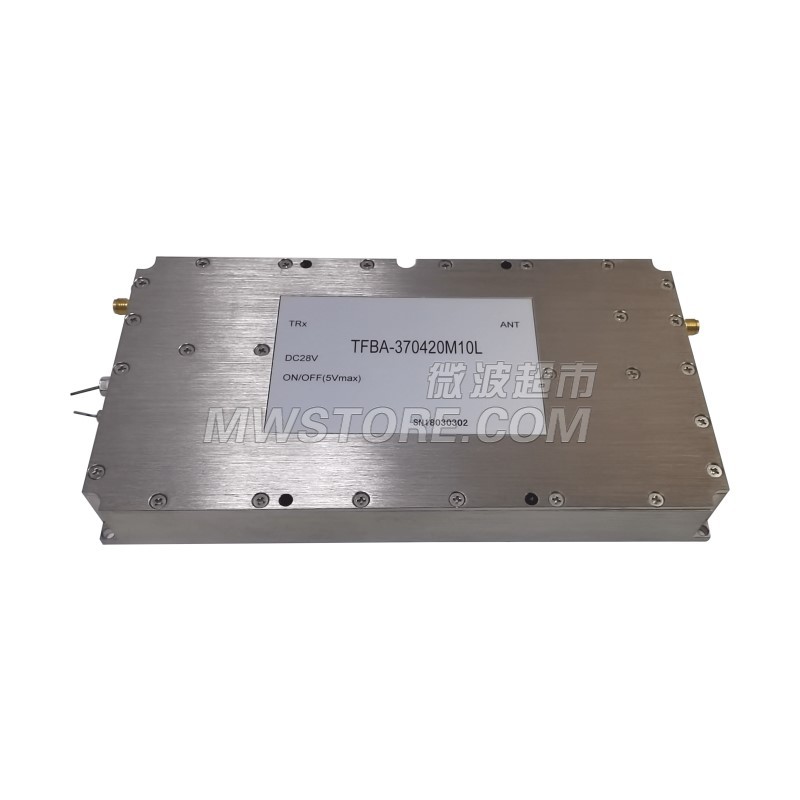

TFBA-370420M10L |
| Connector 1 Series |
SMA |
| Connector 1 Gender |
母 |
| Connector 2 Series |
SMA |
| Connector 2 Gender |
母 |
| Power |
-- |
Electrical Specifications
| Transmit gain |
26dB |
| Receiving gain |
15dB |
| ACPR |
≤-40dBc(@±3.84MHz) |
| Emission average output power |
40dBm typ |
| Emission maximum output power |
47dBm typ |
| In-band fluctuation |
±1.0dB |
| I/O reflection coefficient |
-20dB |
| switching time |
≤4 uS |
| Power supply requirements (voltage/current) |
DC+28V/2.7A(370MHz), 3A(395MHz),3.3A(420MHz) |
| Receive OIP3 |
28dBm |
| Receiving noise coefficient |
1.5dB max |
| Frequency Range |
340～470MHz |
Environmental Specifications
| Storage temperature |
-40℃～100℃ |
| Temperature Range |
-40~70℃ |
MECHANICAL CHARACTERISTICS
| Weight |
-- |
| physical dimension |
195mm×103mm×25mm |
