Typical application fields
- buffer amplifier
- Small signal amplifier or preamplifier
- For laboratory testing
- L-band broadband reception
Description
| brand |
Tianhua Zhongwei |
| model |

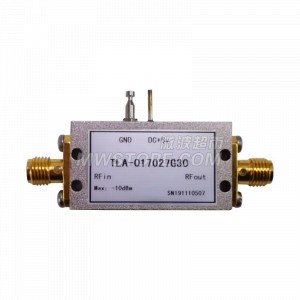

TLA-017027G30 |
Electrical Specifications
| Gain |
31.0dB typ |
| Noise Figure |
1.5dB max |
| Gain Flatness |
±1.5dB typ |
| P1dB |
13dBm typ |
| Voltage |
5V |
| Current |
250mA max |
| Limit Voltage |
7.2V |
| Maximum Input Power |
-10dBm |
| ISWR |
2.0:1 |
| OSWR |
2.0:1 |
| Frequency Range |
1.70～2.70GHz |
Environmental Specifications
| working temperature |
-40℃～55℃ |
| Storage temperature |
-55℃～125℃ |

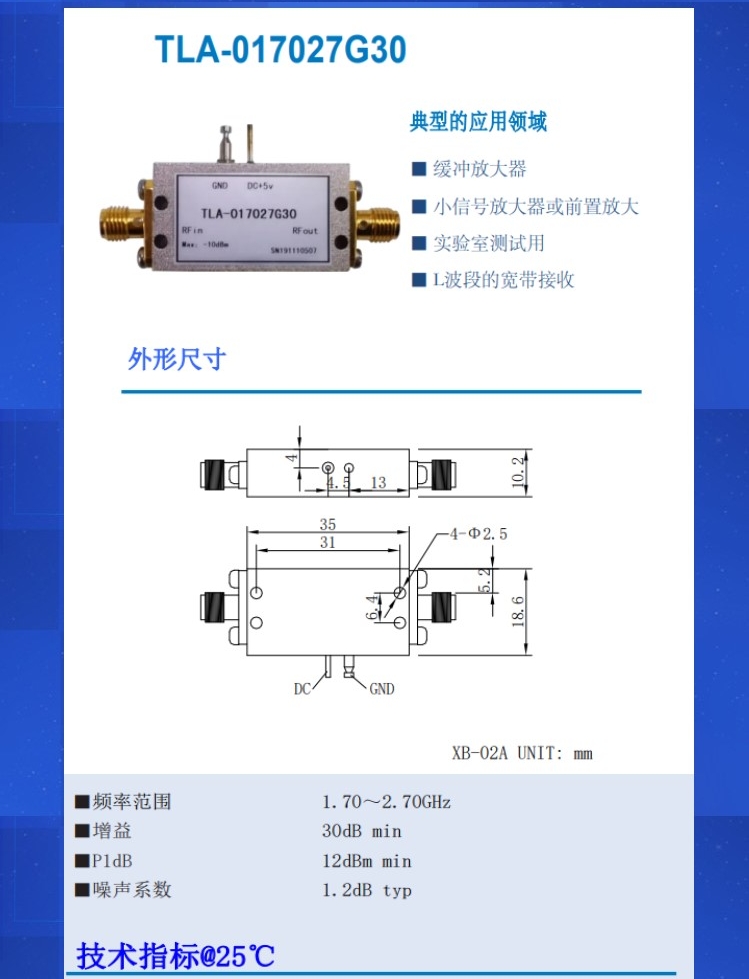

MECHANICAL CHARACTERISTICS
| physical dimension |
35mm×18.6mm×10.2mm |
| weight |
18g |
