Typical application fields
- Broadband reception
- Small signal amplifier or preamplifier
- For laboratory testing
Description
| brand |
Tianhua Zhongwei |
| model |

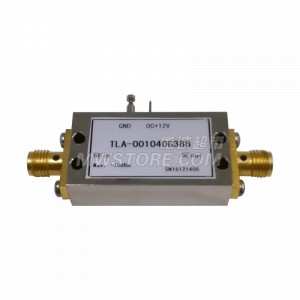

TLA-001040G38B |
Electrical Specifications
| Gain |
38dB typ |
| Noise Figure |
3.5dB |
| Gain Flatness |
±2.5dB typ |
| P1dB |
20dBm typ |
| Limit Voltage |
13V |
| Maximum Input Power |
-10dBm |
| ISWR |
2.0:1 |
| OSWR |
2.0:1 |
| Current |
230mA |
| Voltage |
12.0V |
| Frequency Range |
0.1～4.0GHz |
Environmental Specifications
| Operating Temperature |
-20°C ～70°C |
| Storage temperature |
-55°C ～ 100°C |
MECHANICAL CHARACTERISTICS
| Structural Dimension |
35mm×18.6mm×10.2mm |
| weight |
18g |
